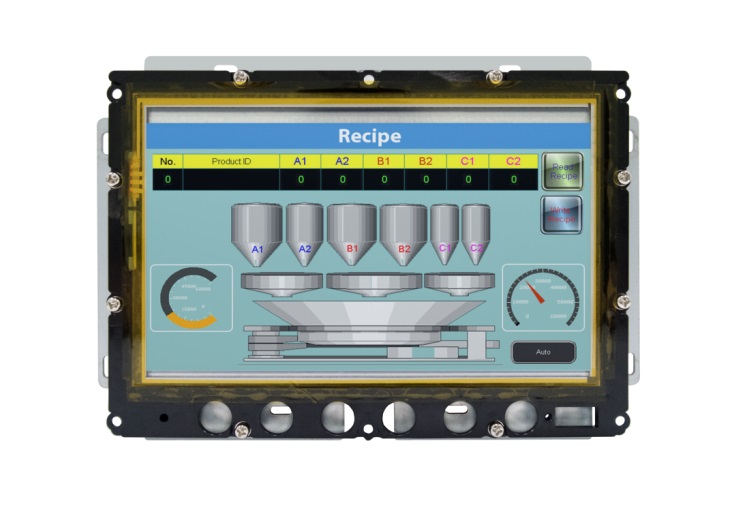

HMI Module

SUNLIKE offers HMI Modules as well, please click the Model No. for the datasheets.

Model No. PA2043-20ST-N1N1 PK2043-30ST-N1N1 PK2043-31ST-N1N1 PT2043-41ST-N1N1 PA2070-30ST-N1N1 PK2070-30ST-N1N1 PK2070-31ST-N1N1 PT2070-51ST-N1N1
Sub-models 20ST 30ST 31ST 41ST 30ST 30ST 31ST 51ST
Display Size 4.3" diagonal 4.3" diagonal 4.3" diagonal 4.3" diagonal 7" diagonal 7" diagonal 7.0" diagonal 7.0" diagonal
Max. Resolution 480*272 480*272 480*272 480*272 800*480 800*480 800*480 800*480
Type TFT LCD with LED Backlight TFT LCD with LED Backlight TFT LCD with LED Backlight TFT LCD with LED Backlight TFT LCD with LED Backlight TFT LCD with LED Backlight TFT LCD with LED Backlight TFT LCD with LED Backlight
Max. Colors 16-bit 16-bit 16-bit 16-bit 16-bit 16-bit 16-bit 16-bit
Backlight Life (hr) 20,000 20,000 20,000 20,000 20,000 20,000 20,000 20,000
Luminance (cd/m2) 350 350 350 350 350 350 350 350
Touch Panel 4-wire Analog Resistive Type 4-wire Analog Resistive Type 4-wire Analog Resistive Type 4-wire Analog Resistive Type 4-wire Analog Resistive Type 4-wire Analog Resistive Type 4-wire Analog Touch Panel 4-wire Analog Touch Panel
CPU RISC ARM9 32Bit RISC ARM9 32Bit RISC ARM9 32Bit RISC ARM9 32Bit RISC ARM9 32Bit RISC ARM9 32Bit RISC ARM9 32Bit RISC ARM9 32Bit
Battery Backed RAM 128KB (optional: 1024KB) 128KB (optional: 1MB) 128KB (optional: 1MB) 128KB (optional: 1MB) 128KB (optional: 1024KB) 128KB (optional: 1MB) 128KB (optional: 1MB) 128KB (optional: 1MB)
Working Memory 64MB 64MB 64MB 64MB 64MB 64MB 64MB 64MB
AP Max Size for Memory  20MB 64MB 64MB 64MB 20MB 64MB 64MB 64MB
Data File Memory 64MB 64MB 64MB 64MB 64MB 64MB 64MB 64MB
Real-Time Clock (RTC) YES  (Unchargeable Battery type,3 years battery life) YES  (Unchargeable Battery type,3 years battery life) YES  (Unchargeable Battery type,5 years battery life) YES  (Unchargeable Battery type,5 years battery life) YES  (Unchargeable Battery type,3 years battery life) YES  (Unchargeable Battery type,3 years battery life) YES  (Unchargeable Battery type,5 years battery life) YES  (Unchargeable Battery type,5 years battery life)
Max Quantity for SCADA  30 Pages 7999 Pages 7999 Pages 7999 Pages 30 Pages 7999 Pages 7999 Pages 7999 Pages
Max Quantity for Macro Commands 100 Lines Unlimited Unlimited Unlimited 100 Lines Unlimited Unlimited Unlimited
Communication Interface Micro SD Slot N/A N/A N/A N/A N/A N/A N/A N/A
USB Host YES (USB2.0) YES (2.0) YES (2.0) YES (2.0) YES (USB2.0) YES (USB2.0) YES (USB2.0) YES (USB2.0)
USB  Client YES (USB2.0) YES (2.0) YES (2.0) YES (2.0) YES (USB2.0) YES (USB2.0) YES (USB2.0) YES (USB2.0)
Serial (Com1) RS232 (5-Pin Terminal) RS232 (5-Pin Terminal) RS232 (5-Pin Terminal) RS232 (5-Pin Terminal) RS232 (DB9) RS232 (DB9) RS232 (DB9) RS232 (DB9)
Serial (Com2) RS422/485 (5-Pin Terminal)(Optional) RS422/485(5-Pin Terminal) RS422/485(5-Pin Terminal) RS485  (5-Pin Terminal) RS422/485 (DB9) RS422/485 (DB9) RS422/485 (DB9) RS422/485 (DB9)
Serial (Com3) RS485  (5-Pin Terminal) RS485  (5-Pin Terminal) RS485  (5-Pin Terminal) RS485  (5-Pin Terminal) RS485 (DB9) RS485 (DB9) RS485 (DB9) RS485 (DB9)
Serial (Com4) N/A N/A N/A RS485  (5-Pin Terminal) N/A N/A RS485 (5-Pin Terminal) (Optional) RS485 (5-Pin Terminal)
Ethernet N/A N/A YES YES N/A N/A RS485  (5-Pin Terminal) (Optional) RS485  (5-Pin Terminal)
Front Function Keys N/A N/A N/A N/A N/A N/A YES YES
Audio out  (optional) N/A N/A N/A N/A N/A N/A N/A N/A
Video in (optional) N/A N/A N/A N/A N/A N/A N/A N/A
Front USB Host Port N/A N/A N/A N/A N/A N/A N/A N/A
Power Supply Voltage 12~24VDC±10% 12~24VDC±10% 24VDC±10% 24VDC±10% 12~24VDC±10% 12~24VDC±10% / Optional: 24VDC ±10% (Isolated) 24VDC±10% 24VDC±10%
Consumption 2W 2W 10W 10W 3W 3W 20W 20W
Environment Operating Temperature -10℃~50℃ -10℃~50℃ -10℃~60℃ -10℃~60℃ -10℃~50℃ -10℃~50℃ -10℃~60℃ -10℃~60℃
Relative Humidity 10%~90% 10%~90% 10%~90% 10%~90% 10%~90% 10%~90% 10%~90% 10%~90%
Shock (operation) 10 ~ 55Hz(X,Y,Z direction, 1G, 30 minutes shock test) 10 ~ 55Hz(X,Y,Z direction, 1G, 30 minutes shock test) 10 ~ 55Hz(X,Y,Z direction, 1G, 30 minutes shock test) 10 ~ 55Hz(X,Y,Z direction, 1G, 30 minutes shock test) 10 ~ 55Hz(X,Y,Z direction, 1G, 30 minutes shock test) 10 ~ 55Hz(X,Y,Z direction, 1G, 30 minutes shock test) 10 ~ 55Hz(X,Y,Z direction, 1G, 30 minutes shock test) 10 ~ 55Hz(X,Y,Z direction, 1G, 30 minutes shock test)
EMI N/A FCC Part 15 Class A FCC Part 15 Class A FCC Part 15 Class A N/A N/A FCC Part 15 Class A FCC Part 15 Class A
CE N/A EN61000-6-2, EN61000-6-4 EN61000-6-2, EN61000-6-4 EN61000-6-2, EN61000-6-4 N/A N/A EN61000-6-2, EN61000-6-4 EN61000-6-2, EN61000-6-4
UL Certification N/A N/A N/A N/A N/A N/A N/A N/A
Ingress Protection N/A N/A N/A N/A N/A N/A N/A N/A
Cooling Natural Cooling Natural Cooling Natural Cooling Natural Cooling Natural Cooling Natural Cooling Natural Cooling Natural Cooling
Dimensions(mm) 127 x 80 x 34.5 127 x 80 x 34.5 127 x 80 x 34.5 127 x 80 x 34.5 200 x 140 x 39.9 200 x 140 x 39.9 200 x 140 x 45
*Depth includes COM Port & Terminal Block Height(optional)
200 x 140 x 45
Bezel Open(mm) 108.95 x 75.1 108.95 x 75.1 108.95 x 75.1 108.95 x 75.1 154.08 x 85.92 154.08 x 85.92 154.08 x 85.92 154.08 x 85.92
Net Weight (Kg) 0.17 0.17 0.17 0.17 0.62 0.62 0.62 0.62
