SUNLIKE offers character LCD display modules in formats of 8x1, 8x2, 10x1, 10x4, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2, 40x2, 40x4, 68x4 by 5x8 dot matrix character, with LCD panel options of TN, STN, FSTN & DFSTN. The polarizer can be positive/ negative mode, while LED backlight is available in color yellow-green, red, blue, white, etc.

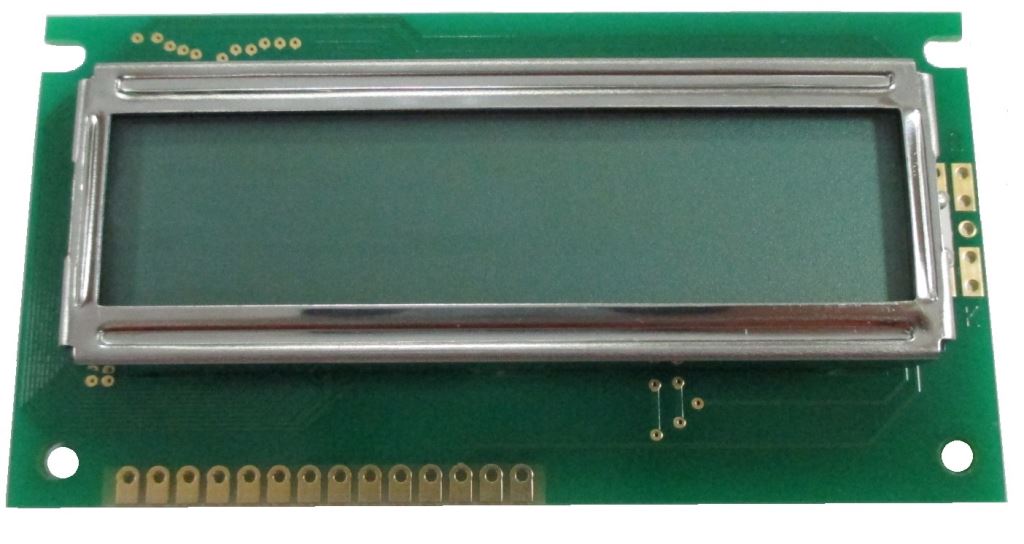

* On account of the environmental regulation, it's suggested that Silver Frame be used.
* Click the Model No. for datasheet.
| MODEL NO. |
DISPLAY |
MODEL SIZE |
VIEW |
CHARACTER |
DOT |
PHOTO |
CONTROLLER
IC |
| FORMAT |
WxHxT (mm) |
AREA |
SIZE |
SIZE |
| SC0801A |
8 x 1 |
60.0 x 36.0 x 10.0 (13.0) |
48.0 x 13.0 |
4.45 x 8.35 |
.85 x 1.0 |
 |
|
| SC0801B |
8 x 1 |
66.0 x 26.0 x 10.0 (13.0) |
48.0 x 13.0 |
4.45 x 8.35 |
.85 x 1.0 |
 |
|
| SC0801C |
8 x 1 |
60.0 x 37.5 x10.0 (13.0) |
48.0 x 13.0 |
4.45 x 8.35 |
.85 x 1.0 |
 |
|
| SC0802A |
8 x 2 |
58.0 x 32.0 x 8.4 (12.8) |
38.0 x 16.0 |
2.96 x 5.56 |
.56 x .66 |
 |
|
| SC0802D |
8 x 2 |
48.0 x 42.0 x 8.4 (12.8) |
38.0 x 16.0 |
2.96 x 5.56 |
.56 x .66 |
 |
|
| SC0802E |
8 x 2 |
40.0 x 35.4 x 7.4 (12.7) |
30.4 x 13.9 |
2.95 x 4.75 |
.55 x .55 |
 |
|
| SC0802F |
8 x 2 |
54.0 x 37.0 x 8.4 (12.8) |
38.0 x 16.0 |
2.96 x 5.56 |
.56 x .66 |
 |
|
| SC1001A |
10 x 1 |
80.0 x 36.0 x 8.8 (12.7) |
65.0 x 16.0 |
4.84 x 9.22 |
.92 x 1.10 |
 |
|
| SC1004A |
10 x 4 |
57.0 x 57.0 x 8.8 |
39.0 x 24.4 |
2.95 x 4.75 |
.55 x .55 |
 |
|
| SC1004B |
10 x 4 |
57.0 x 50.0 x 8.8 |
39.0 x 24.4 |
2.95 x 4.75 |
.55 x .55 |
|
|
| SC1601A |
16 x 1 |
80.0 x 36.0 x 8.8 (12.7) |
65.0 x 16.0 |
3.07 x 6.56 |
.55 x .75 |
|
|
| SC1601B |
16 x 1 |
85.0 x 28.0 x 8.8 (12.7) |
65.0 x 16.0 |
3.07 x 6.56 |
.55 x .75 |
 |
|
| SC1601D |
16 x 1 |
122.0 x 33.0 x 8.8 (13.5) |
99.0 x 13.0 |
4.84 x 9.7 |
.92 x 1.16 |
 |
|
| SC1601K |
16 x 1 |
151.0 x 40.0 x 8.8 (13.0) |
120.0 x 23.0 |
6.0 x 14.54 |
1.152 x 1.765 |
 |
|
| SC1602A |
16 x 2 |
80.0 x 36.0 x 8.8 (12.7) |
65.0 x 16.0 |
2.96 x 5.56 |
.56 x .66 |
 |
|
| SC1602B |
16 x 2 |
85.0 x 30.0 x 8.8 (12.7) |
65.0 x 16.0 |
2.96 x 5.56 |
.56 x .66 |
 |
|
| SC1602C |
16 x 2 |
84.0 x 44.0 x 8.8 (12.7) |
65.0 x 16.0 |
2.96 x 5.56 |
.56 x .66 |
 |
|
| SC1602D |
16 x 2 |
85.0 x 36.0 x 8.8 (12.7) |
65.0 x 16.0 |
2.96 x 5.56 |
.56 x .66 |
 |
|
| SC1602E |
16 x 2 |
122.0 x 44.0 x 8.8 (13.0) |
99.0 x 24.0 |
4.84 x 9.63 |
.92 x 1.16 |
 |
|
| SC1602F |
16 x 2 |
85.0 x 32.6 x 8.8 (12.7) |
65.0 x 16.0 |
2.96 x 5.56 |
.56 x .66 |
 |
|
| SC1602G |
16 x 2 |
84.0 x 44.0 x 8.0 (12.0) |
63.0 x 19.0 |
2.96 x 5.56 |
.56 x .66 |
 |
|
| SC1602H |
16 x 2 |
84.0 x 44.0 x 8.8 (12.7) |
65.0 x 16.0 |
2.96 x 5.56 |
.56 x .66 |
 |
|
| SC1602H1(16 Pin) |
16 x 2 |
84.0 x 44.0 x 8.8 (12.7) |
65.0 x 16.0 |
2.96 x 5.56 |
.56 x .66 |
 |
|
| SC1602J |
16 x 2 |
85.0 x 30.0 x 8.8 (12.7) |
65.0 x 16.0 |
2.96 x 5.56 |
.56 x .66 |
 |
|
| SC1602M |
16 x 2 |
122.0 x 43.0 x 13.0 |
99.0 x 24.0 |
4.84 x 9.63 |
.92 x 1.16 |
 |
|
| SC1602N |
16 x 2 |
65.5 x 36.7 x 9.6 |
54.0 x 14.4 |
2.55 x 4.99 |
.47 x .58 |
 |
|
| SC1602P |
16 x 2 |
53.0 x 20.0 x 8.0 |
36.0 x 10.0 |
1.85 x 3.15 |
.33 x .35 |
 |
|
| SC1602Z |
16 x 2 |
80.0 x 36.0 x 8.8 (12.7) |
65.0 x 16.0 |
2.96 x 5.56 |
.56 x .66 |
 |
|
| SD1602G |
16 x 2 |
66.0 x 26.0 x 8.5 (12.0) |
51.0 x 14.8 |
2.46 x 5.56 |
.46 x .66 |
 |
|
| SD1602H |
16 x 2 |
66.0 x 26.0 x 8.5 |
52.0 x 16.0 |
2.46 x 5.56 |
.46 x .66 |
 |
|
| SD1602I |
16 x 2 |
80.0 x 36.0 x 8.8 (12.7) |
65.0 x 16.0 |
2.96 x 5.56 |
.56 x .66 |
 |
|
| SD1602Q |
16 x 2 |
72.0 x 36.0 x 8.8 (12.7) |
65.0 x 16.0 |
2.96 x 5.56 |
.56 x .66 |
 |
|
| SD1602V |
16 x 2 |
66.0 x 26.0 x 8.5 |
52.0 x 16.0 |
2.46 x 5.56 |
.46 x .66 |
 |
|
| SC1604A |
16 x 4 |
87.0 x 60.0 x 8.8 (12.7) |
62.0 x 25.6 |
2.95 x 4.75 |
.55 x .55 |
 |
|
| SC1604C |
16 x 4 |
87.0 x 60.0 x 8.8 (12.7) |
62.0 x 25.6 |
2.95 x 4.75 |
.55 x .55 |
 |
|
| SC2002A |
20 x 2 |
116.0 x 37.0 x 8.8 (12.7) |
85.0 x 18.8 |
3.20 x 5.55 |
.60 x .65 |
 |
|
| SC2002C |
20 x 2 |
180.0 x 40.0 x 9.1(14.5) |
149.0 x 23.0 |
6.00 x 9.66 |
1.12 x 1.12 |
 |
|
| SC2002D |
20 x 2 |
80.0 x 36.0 x 8.8 (12.7) |
65.0 x 16.0 |
2.56 x 5.56 |
.48 x .66 |
 |
|
| SC2002F |
20 x 2 |
71.2 x 25.2 x 8.7 |
65.0 x 16.0 |
2.56 x 5.56 |
.48 x .66 |
 |
|
| SC2002M |
20 x 2 |
122.0 x 44.0 x 8.8(13.0) |
99.0 x 24.0 |
4.09 x 9.22 |
0.77 x 1.1 |
 |
|
| SC2004A |
20 x 4 |
98.0 x 60.0 x 8.8 (12.7) |
77.0 x 26.3 |
2.95 x 4.75 |
.55 x .55 |
 |
|
| SC2004C |
20 x 4 |
118.0 x 43.0 x 8.8 (12.7) |
77.0 x 26.3 |
2.95 x 4.75 |
.55 x .55 |
 |
|
| SC2004D |
20 x 4 |
145 x 62.5 x 9.1 (13.6) |
123.0 x 42.5 |
4.85 x 9.23 |
.93 x 1.11 |
 |
|
| SC2004G |
20 x 4 |
98.0 x 60.0 x 8.8 (12.7) |
77.0 x 26.3 |
2.95 x 4.75 |
.55 x .55 |
 |
|
| SC2004H |
20 x 4 |
182.0 x 90.0 x7.9 |
147.0 x 65.4 |
5.9 x 12.7 |
1.1 x 1.5 |
 |
|
| SC2402A |
24 x 2 |
118.0 x 36.0 x 8.8 (12.7) |
93.5 x 16.0 |
3.20 x 5.55 |
.60 x .65 |
 |
|
| SC4002A |
40 x 2 |
182.0 x 33.5 x 8.8 (12.7) |
154.0 x 15.3 |
3.20 x 5.55 |
.60 x .65 |
 |
|
| SC4004A |
40 x 4 |
190.0 x 54.0 x 8.8 (13.0) |
149.0 x 29.5 |
2.78 x 4.89 |
.50 x .55 |
 |
|
| SC4004B |
40 x 4 |
288.3 x 77.5 x 12.8 (18.7) |
260.0 x 56.6 |
5.16 x 10.52 |
1.00 x 1.28 |
 |
|
| SC4004C |
40 x 4 |
160.0 x 47.0 x 9.5 (12.7) |
140.0 x 29.0 |
2.70 x 4.35 |
.50 x .50 |
 |
|
| SC6804A |
68 x 4 |
275.0 x 48.0 x 13.5 |
236.0 x 29.5 |
2.70 x 5.15 |
.50 x .60 |
 |
|
