Fast Link

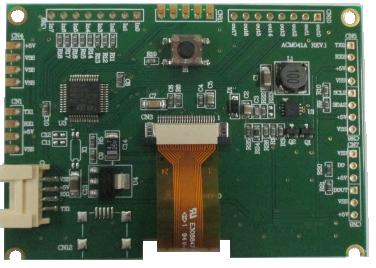

UART Mono

* Click the Model No. for datasheet
    Interface: UART Mixed Character and Graphic modes
    No driver or library needed Multi-screen display capability
    Runs HEX or AT command modes Easy-to-use Windows ezDisplay Console app
    Built-in fonts and patterns Light-weight, Low power consumption
    Able to receive bitmap data and display the bitmap simultaneously

​Graphic LCD/ OLED Module
MODEL NO. SIZE DISPLAY MODEL SIZE ACTIVE GLASS
(inch) FORMAT WxHxT (mm) AREA
  ACM019AFWB-L-P01     2.42     128 x 64   74.8 x 54.5 x 12.5 55.01 x 27.49 FSTN
ACM067AWWB-H-P01 2.42 128 x 64 75.0 x 52.7 x 8.6 55.01 x 27.49 DFSTN
ACM041BWWB-H-U 2.42 128 x 64 75.0 x 52.7 x 8.5 55.01 x 27.49 OLED
ACM053CWWB-H-U 2.42 128 x 64 94.5 x 37.0 x 18.1 55.01 x 27.49   OLED w/ button
ACM053BWWB-H-U 1.54 128 x 64   76.04 x 27.22 x 17.8     35.052 x 17.516   OLED w/ button


Character OLED Module
MODEL NO.   DISPLAY   MODEL SIZE VIEW   CHARACTER     GLASS
FORMAT WxHxT (mm) AREA SIZE
  AL2002AWWB-UA-WB-U01   20  x  2   116.0 x 37.0 x 14.5     75.52 x 13.52   3.22 x 5.57 OLED
AL2004AWWB-UA-WB-U01 20  x  4 98.0 x 60.0 x 14.5 72.42 x 22.82 2.97 x 4.77 OLED
