OLED Graphic

SUNLIKE supplies OLED Mono Graphic Display Modules in formats of 96x16, 72x40, 128x32, 64x128, 128x64, 136x160.

* Click the Model No. for datasheet.

MODEL NO. SIZE  DISPLAY MODEL SIZE ACTIVE DRIVER IC INTERFACE PHOTO
(inch) FORMAT WxHxT (mm) AREA

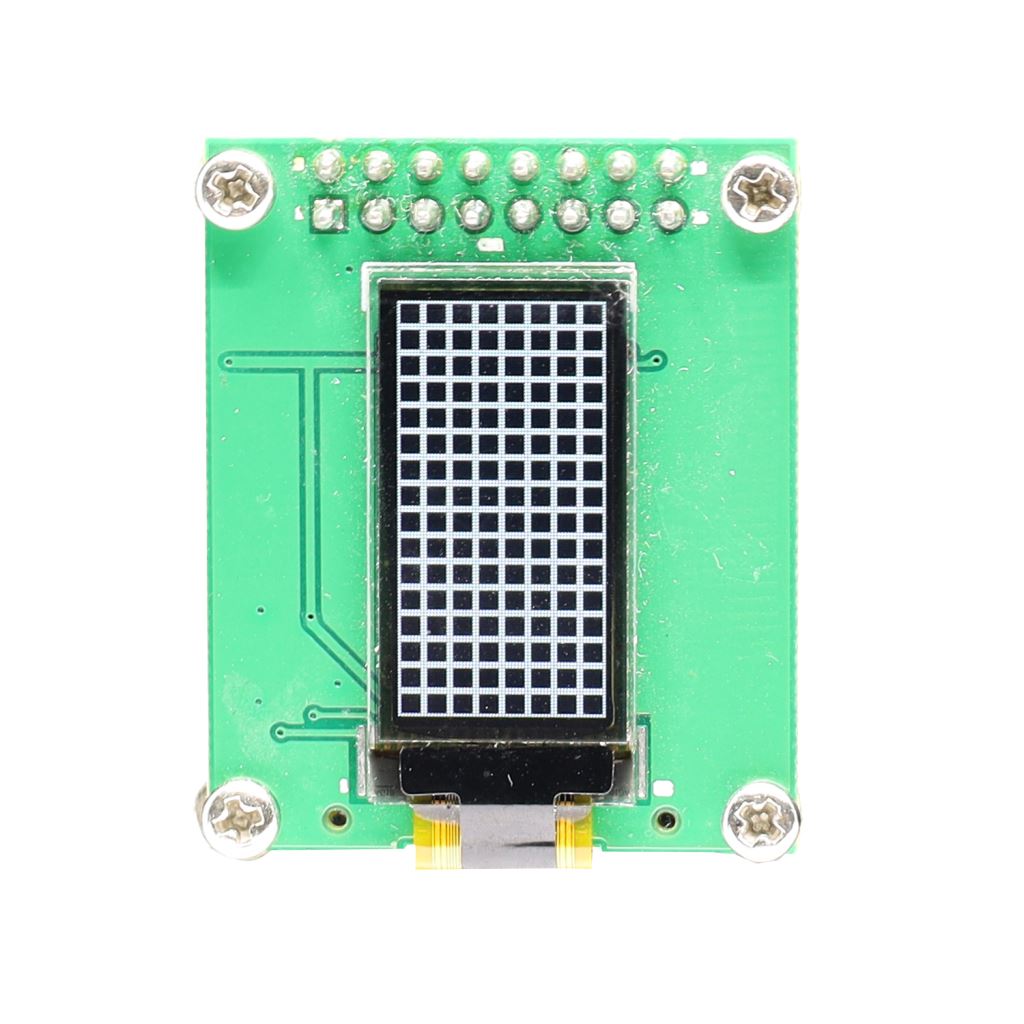

AL64128A 0.96 64 x 128 31.0 x 37.6 x 5.0 10.86 x 21.74 SH1107 6800/ 8080/ SPI/ I2C

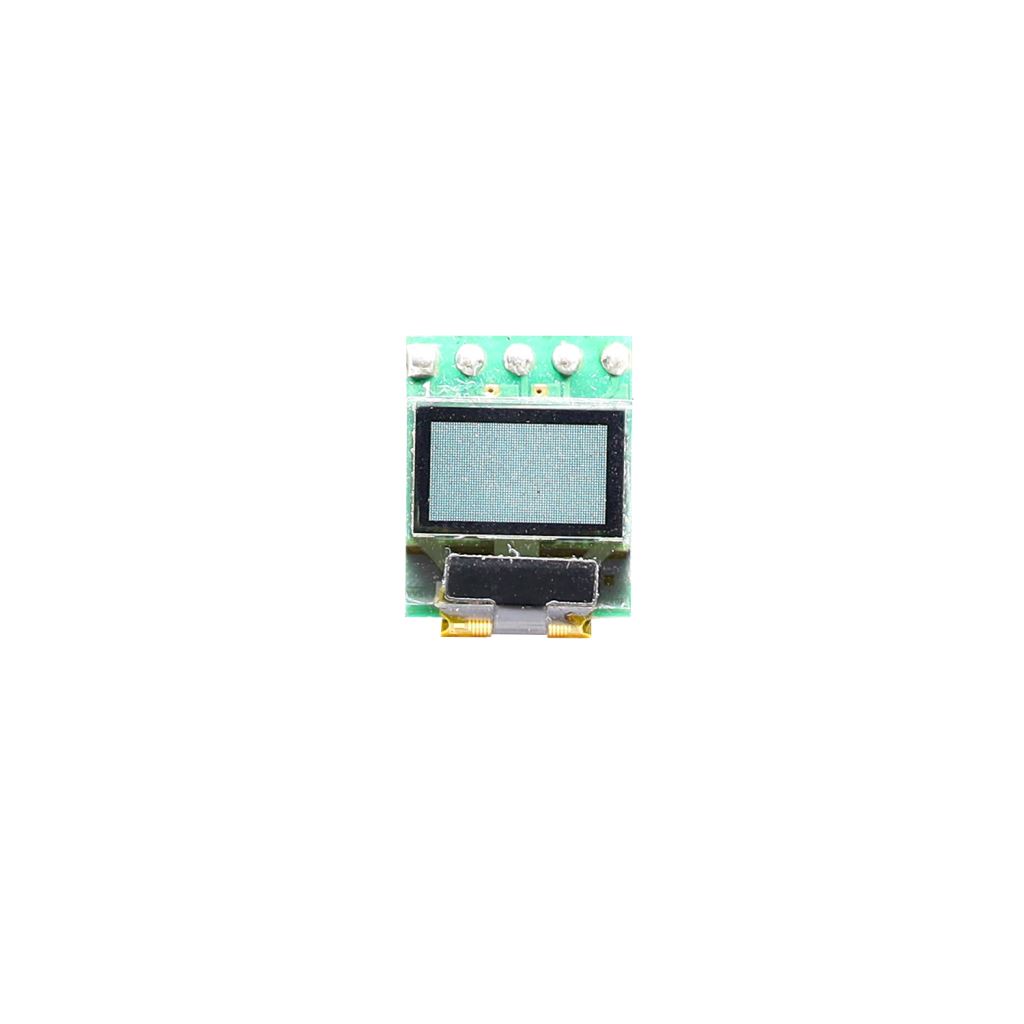

AL7240A 0.42 72 x 40 12.0 x 15.0 x 4.0 9.196 x 5.18 SH1106 I2C

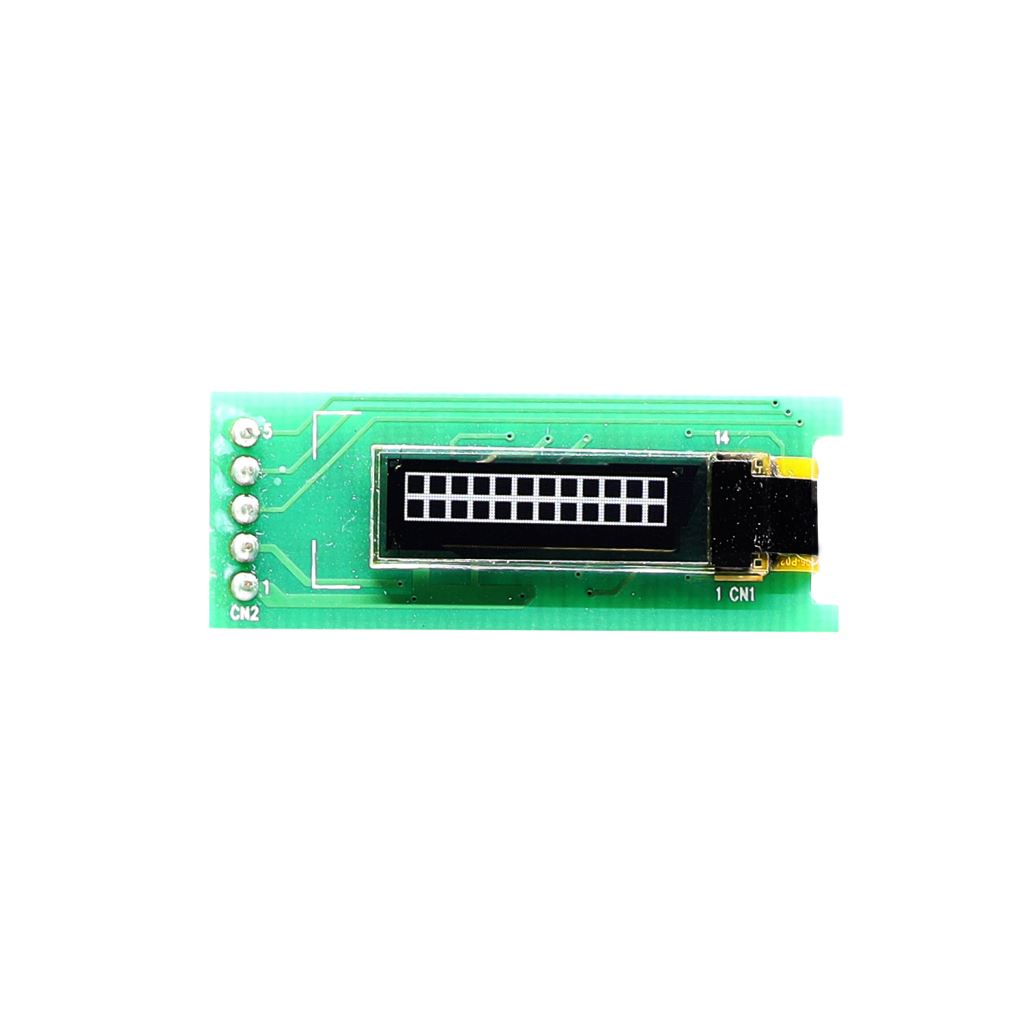

AL9616A 0.69 96 x 16 42.0 x 16.0 x 5.0 17.26 x 3.18 SSD1306 I2C

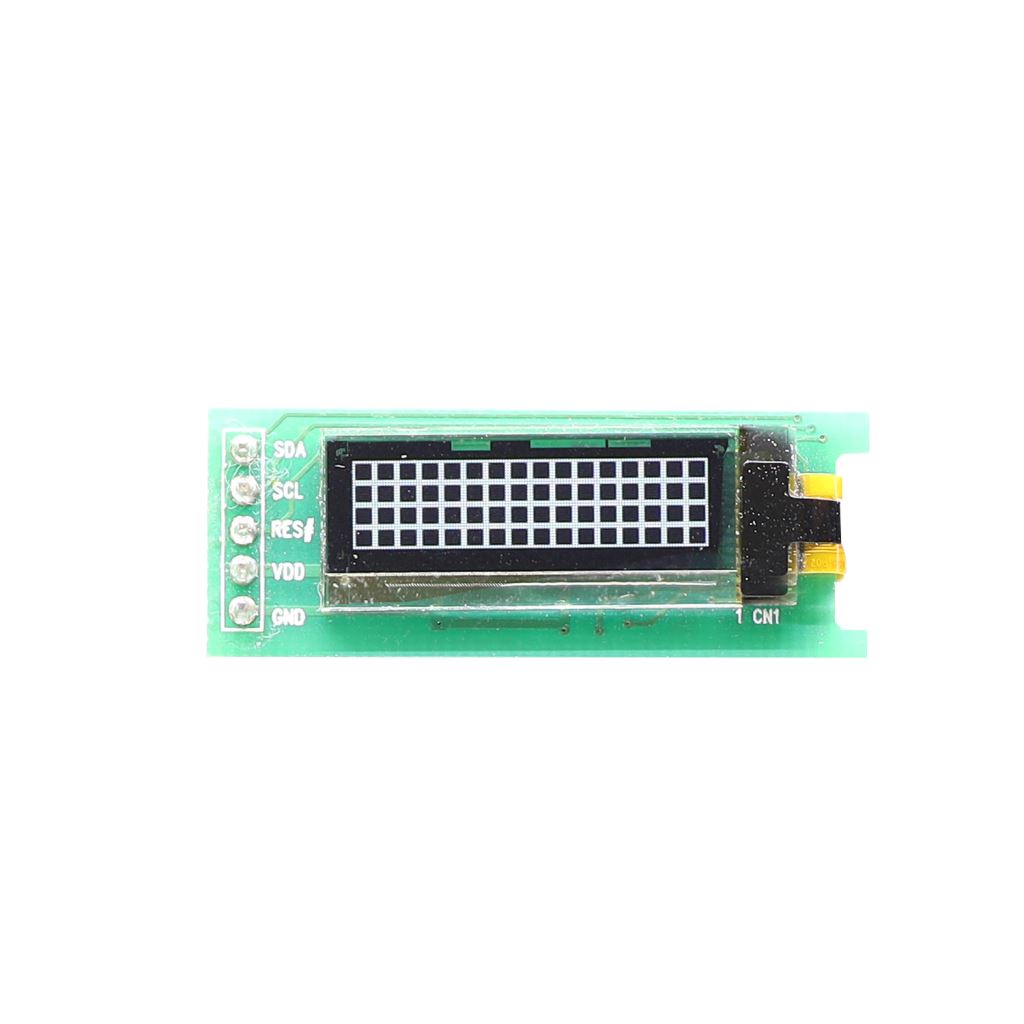

AL12832A 0.91 128 x 32 42.0 x 16.0 x 5.0 22.384 x 5.584 SSD1306 I2C

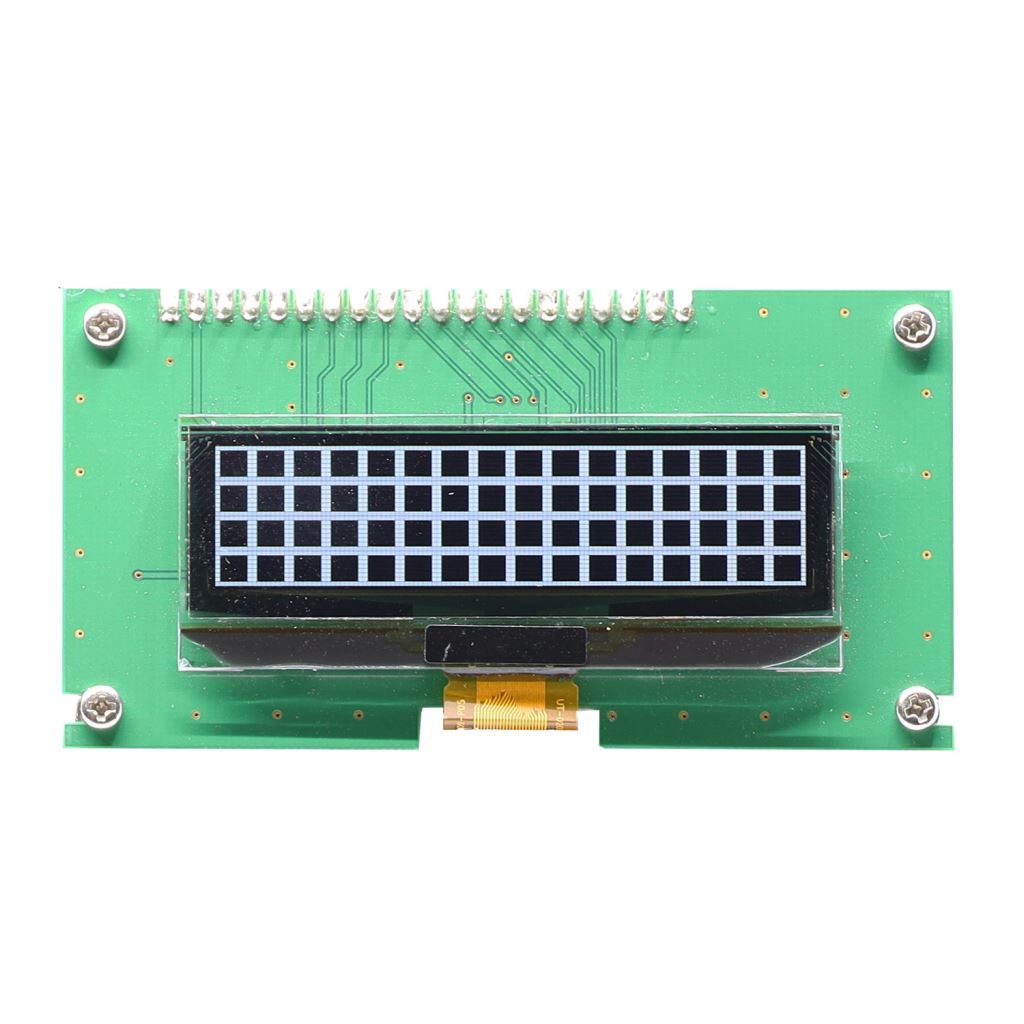

AL12832B 2.23 128 x 32 84.0 x 44.0 x 8.5 55.02 x 13.1 SSD1309 6800/ 8080/ SPI/ I2C
AL12832C 0.91 128 x 32 37.0 x 12.5 x 4.7 22.384 x 5.584 SSD1306 SPI/ I2C

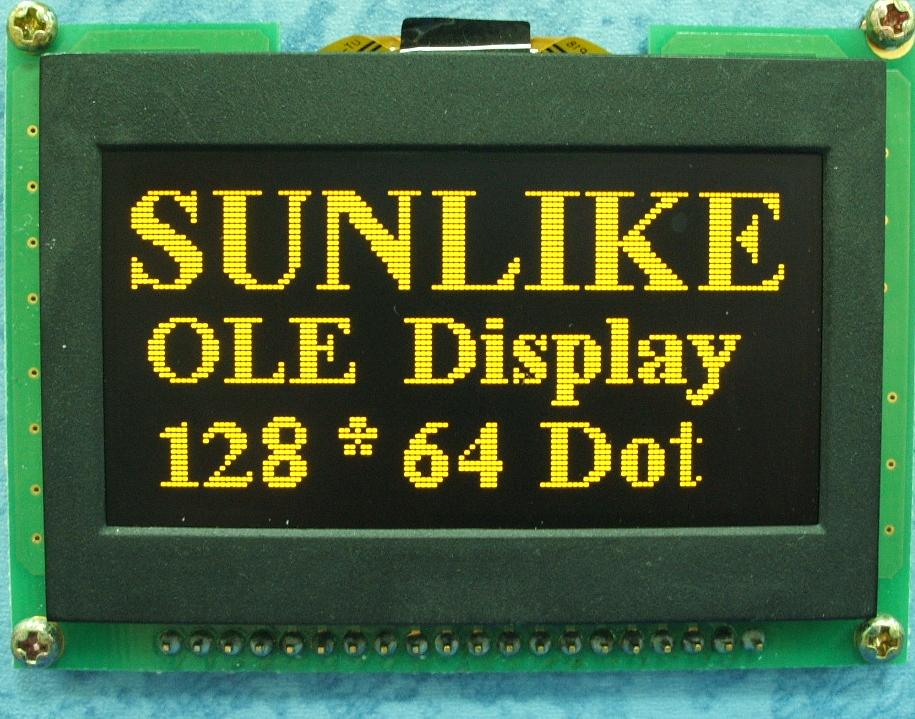

AL12864A 2.7 128 x 64 93.0 x 70.0 x 9.3 61.41 x 30.69 SSD1322 6800/ 8080/ SPI

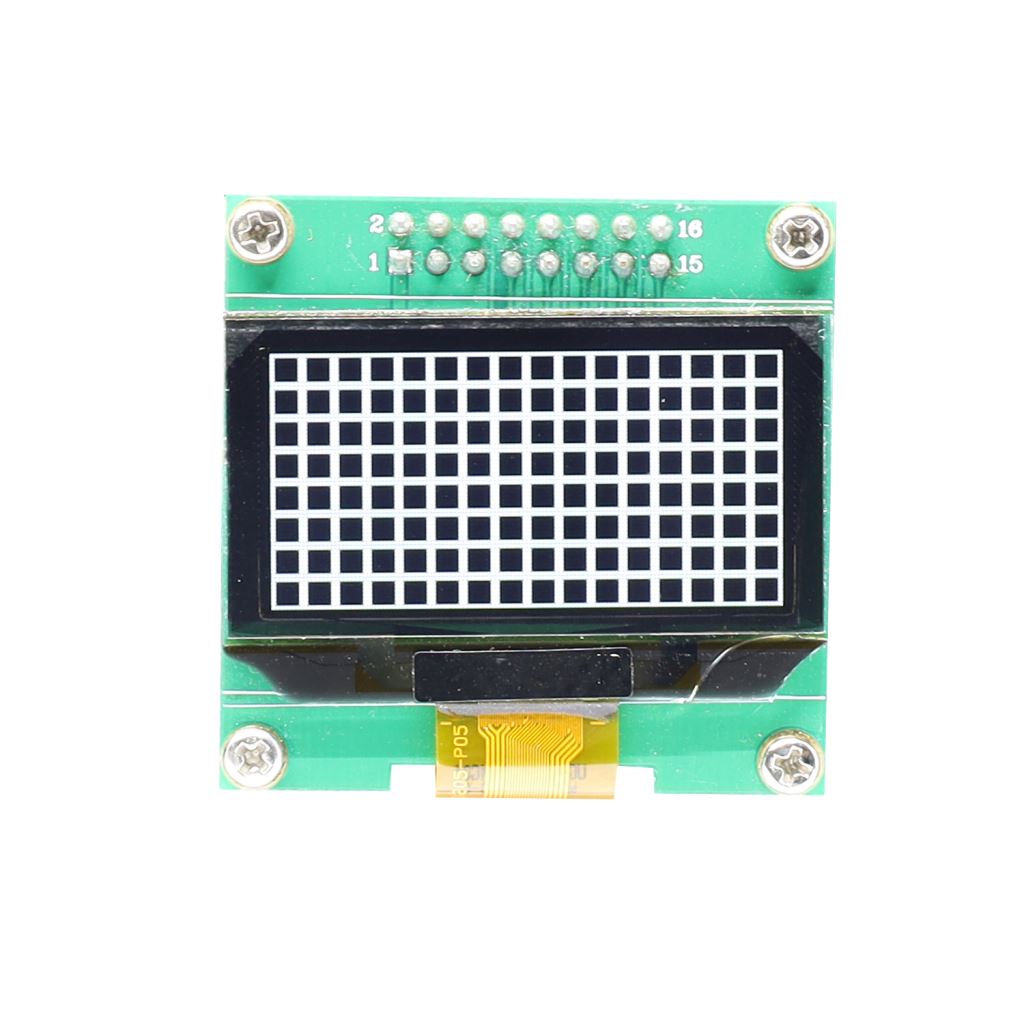

AL12864B 1.54 128 x 64 42.04 x 41.22 x 6.0 35.052 x 17.516 SSD1309 6800/ 8080/ SPI/ I2C

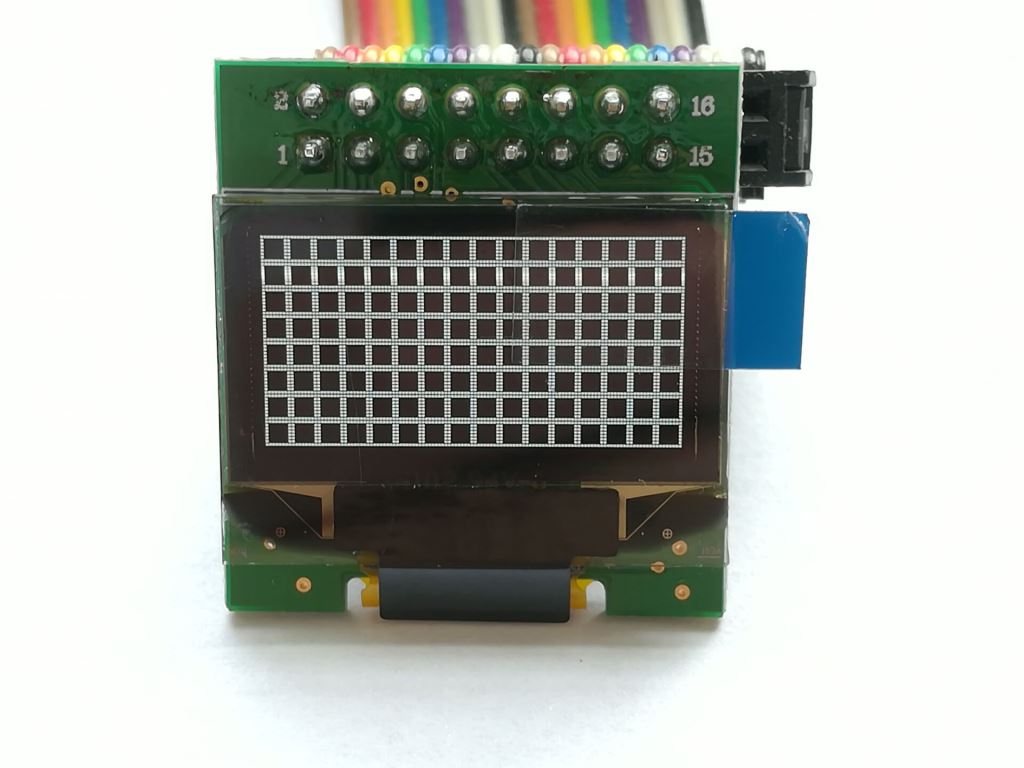

AL12864C 0.96 128 x 64 27.0 x 28.8 x 5.9 21.744 x 10.864 SSD1306 6800/ 8080/ SPI/ I2C
AL12864H 2.42 128 x 64 70.5 x 49.6 x 6.3 55.01 x 27.49 SSD1309 6800/ 8080/ SPI/ I2C
AL136160A 1.07 136 x 160 32.7 x 32.2 x 1.0 27.18 x 23.1 SH1108 SPI

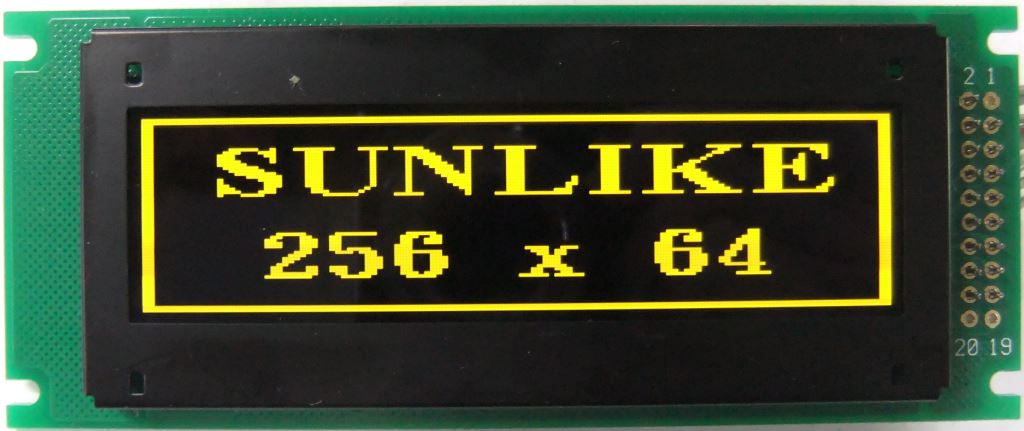

AL25664A 3.1 256 x 64 110.0 x 44.0 x 9.7 76.78 x 19.18 SSD1322 6800/ 8080/ SPI
AL25664B 5.5 256 x 64 180.0 x 65.0 x 9.7 135.65 x 33.89 SSD1322 6800/ 8080/ SPI


⇒QUOTE DISPLAY NOW
