Product Details

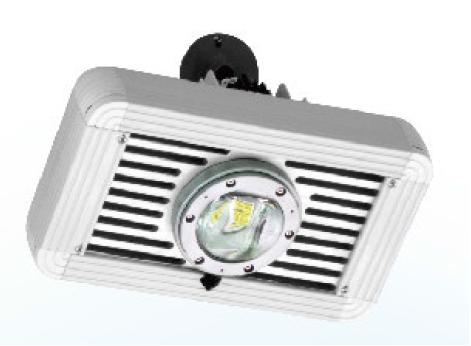

High Bay 100W

  • Model:S-1-100-5-132
  • Specification:380(L) x 230(W) x 208(H) mm, 100 Watt, 100-240 Vac

Product Introduction

Outdoor and indoor occasions like factory, basement, warehouse, parking lot, etc.

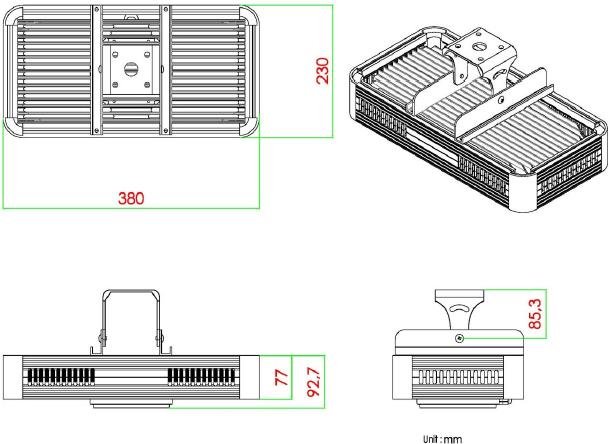

Dimension 380(L) x 230(W) x 208(H) mm
Weight 8.05KG (Inclding power)
Housing Aluminum alloy
Beam Angle 15º, 56º, 95º, 98ºx132º
LED Light Lumens
(Cold Test)
10500 +/- 5% lm typ, for 5700K
LED Light Lumens
(Thermal Balance)
10000 +/- 5% lm typ. for 5700K
CRI > 70 typ. for 5700K
LEDs Chip on Board
Power Input 100~240Vac
Power Consumption 100 +/- 10% Watt
Storage Temperature -40ºC ~ 80ºC
Operation Temperature -40ºC ~ 50ºC
Ingress Protection Rating Light: IP66 (IP68 optional)
  Power: IP65 (IP67 optional)

Product Notes

For detailed specification of LCD Module, TFT- LCD, Touch Panel, OLED Display, LED Module, feel free to contact us.
